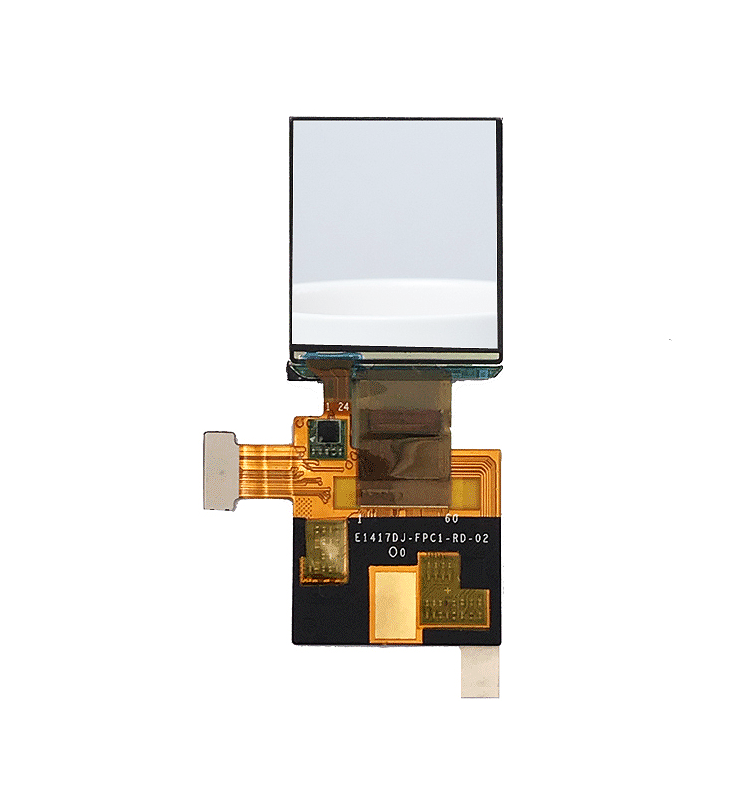

    1.41 Inch Display (320x360) AMOLED LCD Modules For Smart Sport Watch

    Ask Lasest Price
    Brand Name : OK
    Model Number : OKT0141
    Certification : ISO9001:2005
    Price : USD
    Payment Terms : T/T,, Western Union,Paypal
    Supply Ability : 1000000PCS
    Delivery Time : 10-35 working days
    • Product Details
    • Company Profile

    1.41 Inch Display (320x360) AMOLED LCD Modules For Smart Sport Watch

    1.41 Inch Display (320x360) AMOLED LCD Modules


    1.Product Applications
    Smart Watch
    2.Specifications
    Display color16.7M (RGB x 8bits)
    Display format1.41 ”(320RGBx360)
    Pixel arrangementReal RGB arrangement
    InterfaceMIPI
    3. I/O Connection
    # Pin name I/O Description
    1 ELVDD Power Power supply for OLED
    2 ELVSS Power Power supply for OLED
    3 VPP Power
    Power supply for OTP.
    Leave the pin to open when not in use.
    4 GND_1 Power GND
    5 DSI_CLKN I/O MIPI DSI clock-
    6 DSI_CLKP I/O MIPI DSI clock+
    7 GND_2 Power GND
    8 XRES I
    This signal will reset the device and must
    be applied to properly initialize the chip.
    Active low.
    9 VDD1 Power Driver IC analog supply
    10 TP_RESX I Reset
    11 TP_SDA I/O I2C Data Line
    12 TP_INT I/O Interrupt to Host
    13 GF1 - For customer’s requirement
    14 GF3 - For customer’s requirement
    15 GND_3 Power GND
    16 GND_4 Power GND
    17 GND_5 Power GND
    18 GF2 - For customer’s requirement
    19 NC - No connector
    20 TP_SCL I/O I2C Clock Line
    21 TP_VDD Power TP Power Supply
    22 VDD2 Power Driver IC analog supply
    23 TE O Tear effect output
    24 GND_6 Power GND
    25 DSI_D0P I/O MIPI DSI data0+
