Overview

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

Features

• 128x128 high resolution
• 16 gray scale, better display effect
• Supports SPI or I2C interface, configured via onboard resistor
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Driver: SSD1327
• Interface: SPI / I2C
• Display color: White
• Gray scale: 16
• Resolution: 128x128 (most other competitive products are typically 128x64)
• Viewing angle: >160°
• Operating voltage: 3.3V / 5V
• Dimension: 33.8 (W) x 43.7 (H) x 1.41 (T) (mm)

Interface

There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

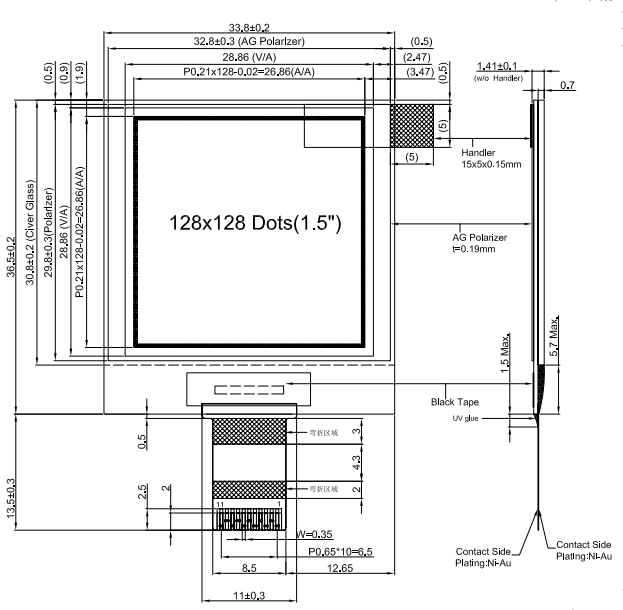

Dimensions

FAQ

How to order lcd?

A:Please send us your purchase order by Email or Fax or by alibaba, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity,part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

    Shenzhen OK Smart-Lcm Photoelectric Co.,Ltd is a high-tech company who run display equipment research, produce and sales, with most advanced technology and strong strength. Shenzhen OK Smart-LCM Photoelectric Co.,Ltd owns their independent producing center-Jiangxi Huaersheng Technology, serving large-scale enterprise within China and outside China.
    We set several department, including vehicle dept.Intelligent software dept, mono LCD dept, TFT LCD dept and OLED dept. We also have Beijing, Shenzhen, Shanghai sales office, and Beijing, Shenzhen R&D center, factories in Jiangxi Wanzai.Our LCD, LCD module, TFT LCD, PMOLED, AMOLED and flexible LCD spreads around the world. Our producing capacity can reach over 2 billion RMB a year.
    We own many high-tech producing equipment, including incision,cleaning, grinding and patch, CFOG bonding, automatic glue spray, full plying-up, backlight assemble, product test. With several years development, We owns many Panasonic full-automatic equipment, and cooperate with all those panel factories. We offer LCD display technique to many Chinese vehicle factories like BAIC group, SAIC group, form our own full industry chain. We have cooperation with those famous enterprise inside or outside China, like Skyworth, Bosch China, SouGou, Foxconn.
    So far, our products cover industrial control digital readout, vehicledisplay, business display, electronic end, medical equipment, intelligent home.
     OK Smart fellows will keep creative mind and keep technique update. We will stand on the front of the era of science and technology with our newer/better/stronger technique. We will serve every customer with high quality and advanced technology.
