390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display

Shenzhen Ok Smart-Lcm Photoelectric Co., Ltd.
Contact Now
    Buy cheap 390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display from wholesalers

    Buy cheap 390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display from wholesalers
    • Buy cheap 390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display from wholesalers

    390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display

    Ask Lasest Price
    Brand Name : OKSMART
    Model Number : OKA119-01
    Certification : SGS
    Price : usd 18 - 30 piece
    Payment Terms : T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 10000 pieces per month
    Delivery Time : 1- 30 working days
    • Product Details
    • Company Profile

    390 X 390 Resolution Round OLED Display , High Contrast Micro OLED Display

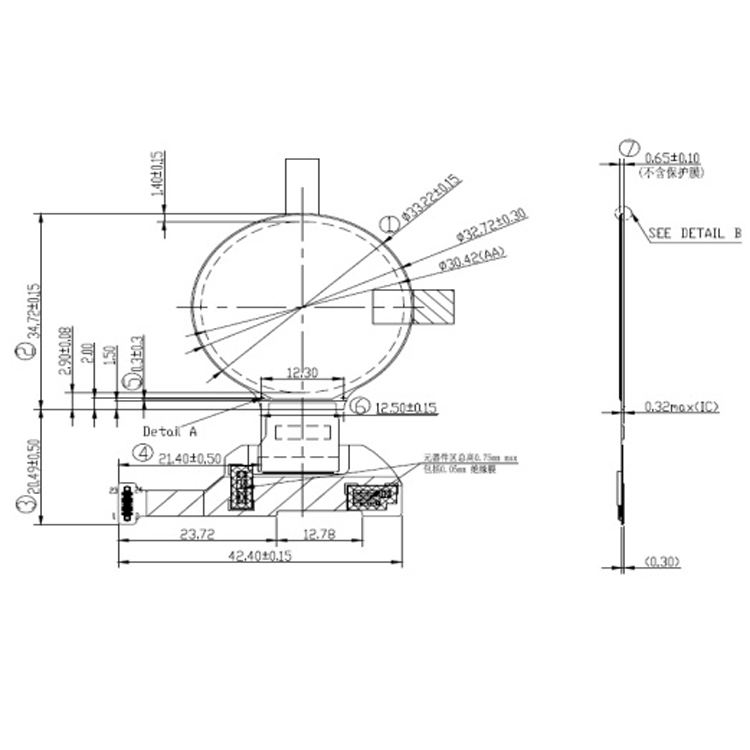

    1.19 inch oled module 390x390 pixels display


    The OLED display is a display made using organic electroluminescent diodes. Due to simultaneous self-emission, no backlight source, high contrast, thin thickness, wide viewing angle, fast response, flexibility for use in panels, wide temperature range, and simple construction and process are considered A new generation of flat-panel display emerging applications.


    OLED is divided into active OLED (AMOLED) and passive OLED (PMOLED) depending on the driving method

    Product Description


    OLED
    NoModelSizeResolutionColorOutline DimensionInterface
    1OKP6448-010.66 inch64x48white18.46x18.1x1.25 (mm)4-wire SPI, I2C
    2OKP12832-020.91 inch128x32white25.9 (W)x10 (H)I2C
    3OKP12864-030.96 inch128x64white26.70x19.26x1.4 (mm)4-wire SPI, I2C
    4OKP9696-011.12 inch96x96full color25.8 (W)x30.1 (H)4-wire SPI, I2C
    5OKP12864-051.30 inch128x64white34.5x23.0x1.4 (mm)4-wire SPI, I2C
    6OKP128128-01A21.50 inch128x128white32.8x30.8(mm)SPI
    7OKP12864-111.54 inch128x64white42.04x27.22x1.4 (mm)4-wire SPI, I2C
    8OKP160128-011.77 inch160x128full color42.7x 33.4(mm)4-wire SPI, I2C
    9OKP25632-011.80 inch256x32white52.0x34.7(mm)4-wire SPI, I2C
    10OKP12864-092.40 inch128x64yellow60.5x32.3(mm)4-wire SPI, I2C
    11OKP25664-013.20 inch256x64white87.4x28.5(mm)4-wire SPI, I2C
    12OKA0139-011.39 inch400x400full color38.6x40.0(mm)MIPI,SPI
    13OKA0141-011.41 inch320x360full color26.04x30.18 (mm)MIPI
    14OKA0500-085.00 inch720x1280full color64.12x116.7(mm)MIPI 4 lines
    15OKA0550-065.50 inch1080x1920full color70.66x128.36x0.82(mm)MIPI 4 lines

    Our Factory


    1.19 inch oled module 390x390 pixels display


    Q: Where to get the datasheet before or after purchase?

    Please send email to Jane Jiang, we will reply you in 24hours


    More questions, please contact:


    Q:What should I do if a part I receive is damaged?


    It is extremely rare to receive a damaged part because we quality test all of our parts before shipping them out.
    However if you believe a part you ordered was damaged before you tried to install it,

    keep it in its’ original box and wrapping and contact us so that we may assist you.


    Q:Can you design the lcd in acccordance with our demand?


    Sure.We will give you the best tooling charge.
