    FSTN display 16096 Display module positive LCD display FSTN monochrome cog

    Ask Lasest Price
    Brand Name : OKSMART
    Model Number : OKM16096-06
    Certification : SGS
    Price : usd 2.7- 3.8 piece
    Payment Terms : T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 10000 pieces per month
    Delivery Time : 1- 30 working days
    • Product Details
    • Company Profile

    FSTN display 16096 Display module positive LCD display FSTN monochrome cog

    FSTN display 16096 Display module positive LCD display FSTN monochrome cog

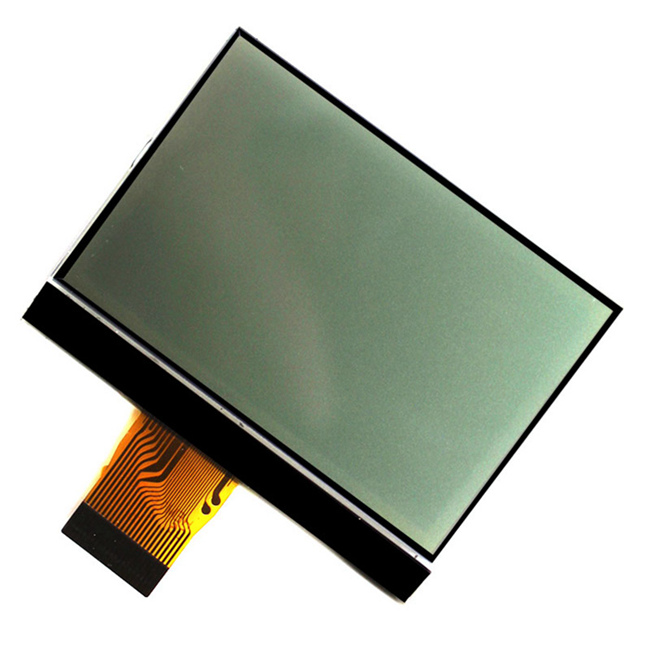

    FSTN monochrome graphic lcd module 16096 graphic 160x96 lcd display Newest high performance 16096 graphic lcd ,oksmart advantage :we have our own lcd glass line ,customizabble dimention and backlight and also connector .

    I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

    OKM16096-06
    Pin noSymbolFunction
    1VGLCD driving voltage for segment circuits.
    2VOLCD driving voltage for common circuits at negative frame
    3XVOLCD driving voltage for common circuits at negative frame.
    4C1+DC/DC voltage converter.
    5C1-DC/DC voltage converter
    6VDDSupply voltage for logic circuit +3.3V
    7VSSGround
    8IF1The pin select interface operation mode.
    9IF0The pin select interface operation mode.
    10/CSThis is the chip select signal. When /CS = “L” and CS = “H”, then the chip select becomes active, and data/command I/O is enabled
    11AOSelect register data when A0= “H”, and instruction when A0= “L”
    12ERDIn 6800 mode, it’s enable control pin. In 8080 mode, when /RD=0, read is active
    13RWRIn 6800 mode, it’s Read/Write control pin. In 8080 mode, when /WR=0, write is active.
    14RSTReset input pin, When RET is “L”, initialization is executed
    15D0~D7Serial data input terminal
