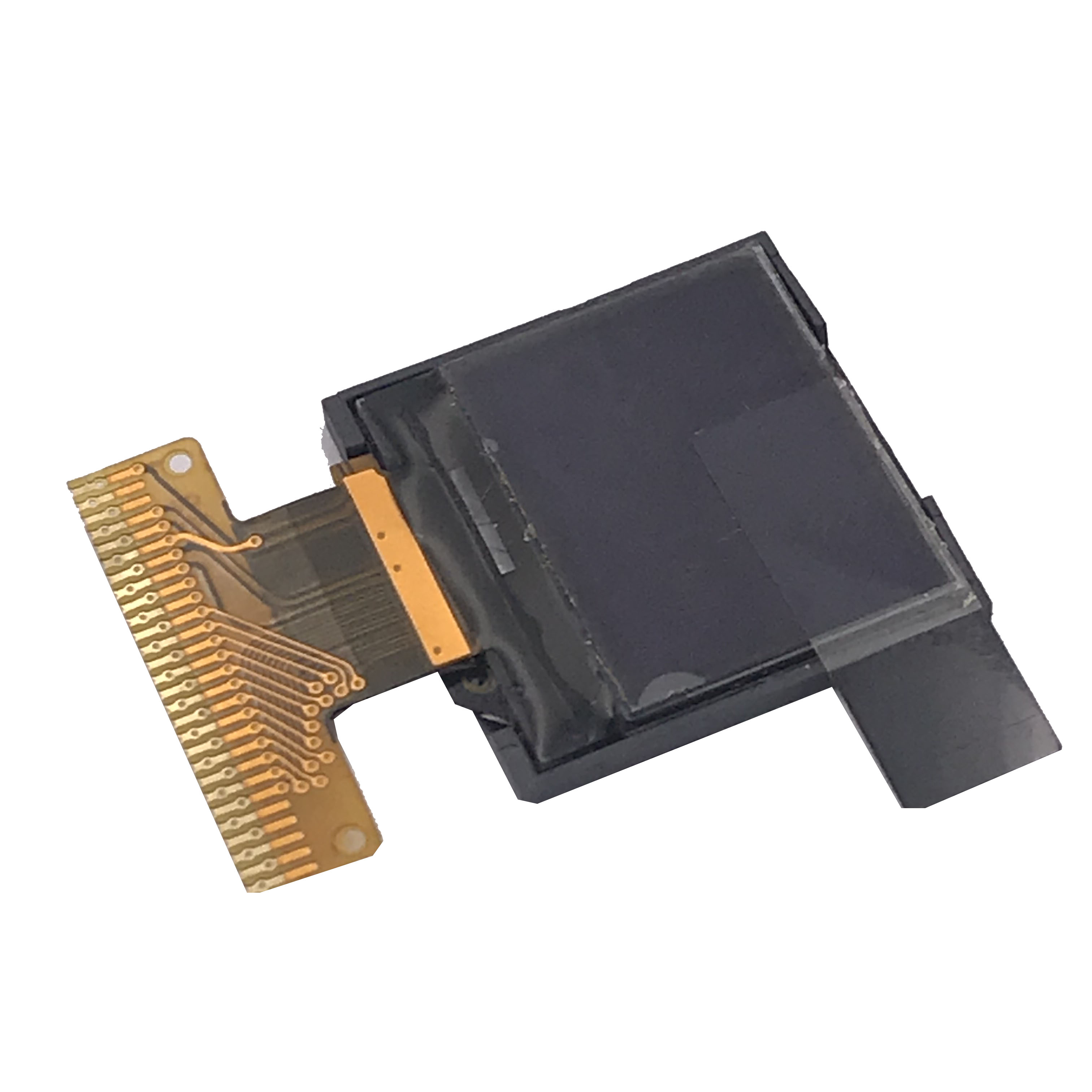

0 . 66 inch Very Smalll OLED Display Module 64 x 48 Display Module
* okp6448 is the graphic OLED display module made of 64x48
individual blue OLED pixels , diagonal is only 0 . 66 inch .
The controller ic SSD1306 , communicates via 8080 4 - bit / 8 - bit
parallel and I2C / 4 - wire serial interface , thanks to controller
' s built - in voltage generation , only a single 2 . 8 V power
supply is needed . Because the display makes its own light , no
backlight is required .
* This reduces the power required to run the OLED and is why the
display has such high contrast , extremely wide viewing angle and
extremely operating temperature . The fpc is the soldering type ,
no need connector . Just solder the FPC on your PCB directly .
| Pixel Pitch | 0 . 21 × 0.21 ( mm ) | Active Area | 13 . 42 × 10 . 06 ( mm ) |
| Panel Size | 18 . 46 × 18 . 1 × 1 . 25 ( mm ) | Number of Pixels | 64 × 48 |
| Outline Drawing | According to the annexed outline drawing | Pixel Size | 0 . 19 × 0 . 19 ( mm ) |
Packaging and Shipping :
FAQ :
Q: Are you factory?
A: Yes, our factory was founded in 2006, focusing on the research
and development of LCD liquid crystal display modules and OLEDs for
12 years.
Q: May I get some discount?
A: Sure. Discount is available for large order quantity.
Q: How can I get my goods?
A: Shipping by air, courier, sea etc. Depanding your sechdule.
Q: Can I get a sample?
A: Yes, we offer sample for testing.
Q: Are you a verified supplier on Alibaba?
A: Yes, of course. we are a 7th year gold supplier on Alibaba and
verified video shooted by Alibaba workers, please take a look at
our home page of Alibaba website .
