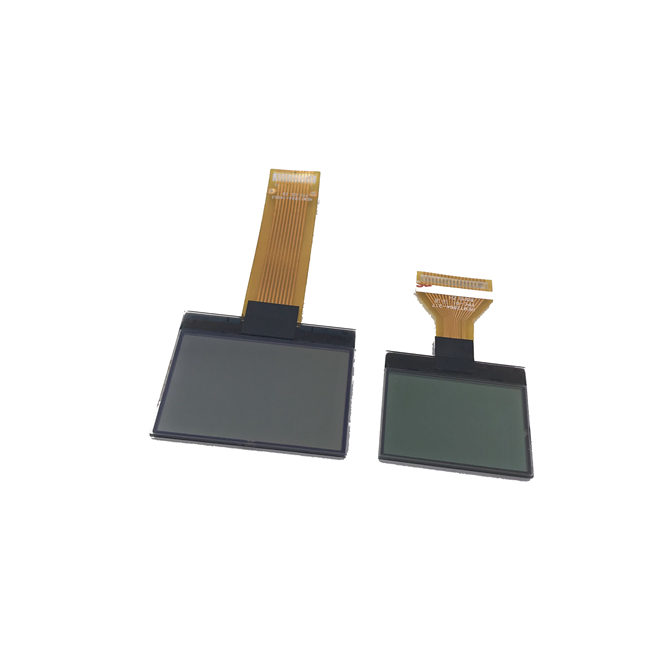

LCD12864 LCD module 5 / 3.3V 12864 dot matrix screen and 12864 industrial control screen

Product parameters:

Format : 128X64 Dots
LCD mode : STN,Yellow-Green, Positive, Transmissive
Viewing direction : 6 o’clock
Driving scheme : 1/64 Duty cycle, 1/9 Bias
Low power operation : Power supply voltage range (V DD ): 3.3V
VLCD adjustable for best contrast : LCD driving voltage (V OP ): 9.6V
Driver IC : ST7567/COG

Operating temperature : 0℃~50℃
Storage temperature : -10℃~60℃
Module size : 65.8mm(L)*36.8mm(W)*6.2mm(H)
Viewing area : 53mm(L)*24.6mm(W)
Dot pitch : 0.36mm(L)*0.345mm(W)
Dot size : 0.33mm(L)*0.315mm(W

Pin no. Symbol Function:

1 : /CS Chip Select , When /CS= “L”, chip is selected
2 : /RST When /RST= “L”, the settings are initialized
3 : A0 Select register data when A0= “H”, and instruction when A0= “L”
4 : SCL Serial clock input terminal
5 : SDA Serial data input terminal
6 : VDD Supply voltage for logic circuit +3.3V
7 : GND Ground
8 : V0 LCD driving voltage for common circuits at negative frame.
9 : XV0 LCD driving voltage for common circuits at positive frame.
10 : VG LCD driving voltage for segment circuits
