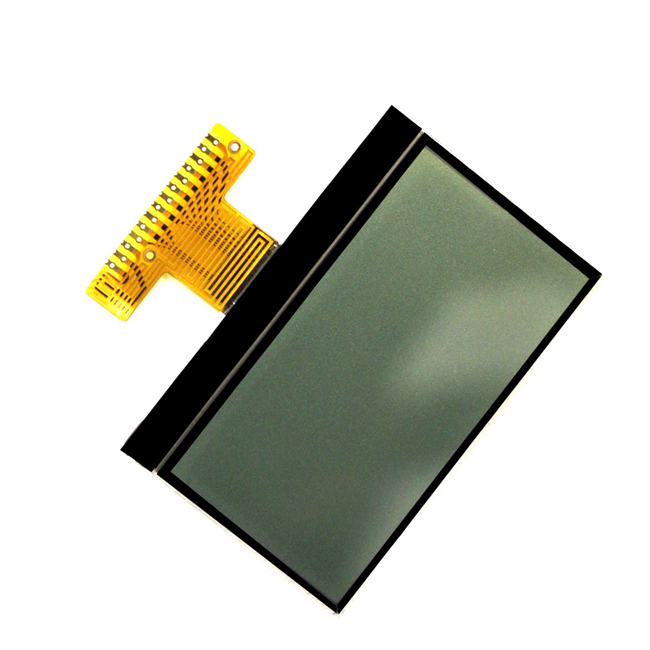

12864 monochrome screen graphic cog lcd display module with custom OEM design

Packaging & Delivery:

Packaging Details:
Standard International Exportation Package
Delivery Time:
in-stock sample immediately, 2 wks new sample, 4-5 wks okm 12864-261B

Company Strength:
1 > ISO9001 certificated, Factory Direct Supplied
2 > RoHS Compliant, Lead Free, Reach Compliant
3 > Competitive Price and Short Lead-time
4 > Professional Team with Rich Experiences in Design/Mfg/Quality Control
5 > Small MOQ Support & Fast Response to Customers
6 > Long Product Life Time

MP in no. Symbol Function:
1 /CS1 Chip Select , When CS1B= “L”, chip is selected
2 /RST When /RES= “L”, the settings are initialized
3 A0 Select register data when A0= “H”, and instruction when A0= “L”
4 SCLK Serial clock input terminal
5 SDA Serial data input terminal
6 VDD Supply voltage for logic circuit +3.3V
7 VSS Ground
8 V0 LCD driving voltage for common circuits at negative frame.
9 XV0 LCD driving voltage for common circuits at positive frame.
10 VG LCD driving voltage for segment circuits.
11 LEDA Supply voltage for backlight 3.0V
12 LEDK Supply voltage for backlight GND

    Shenzhen OK Smart-Lcm Photoelectric Co.,Ltd is a high-tech company who run display equipment research, produce and sales, with most advanced technology and strong strength. Shenzhen OK Smart-LCM Photoelectric Co.,Ltd owns their independent producing center-Jiangxi Huaersheng Technology, serving large-scale enterprise within China and outside China.
    We set several department, including vehicle dept.Intelligent software dept, mono LCD dept, TFT LCD dept and OLED dept. We also have Beijing, Shenzhen, Shanghai sales office, and Beijing, Shenzhen R&D center, factories in Jiangxi Wanzai.Our LCD, LCD module, TFT LCD, PMOLED, AMOLED and flexible LCD spreads around the world. Our producing capacity can reach over 2 billion RMB a year.
    We own many high-tech producing equipment, including incision,cleaning, grinding and patch, CFOG bonding, automatic glue spray, full plying-up, backlight assemble, product test. With several years development, We owns many Panasonic full-automatic equipment, and cooperate with all those panel factories. We offer LCD display technique to many Chinese vehicle factories like BAIC group, SAIC group, form our own full industry chain. We have cooperation with those famous enterprise inside or outside China, like Skyworth, Bosch China, SouGou, Foxconn.
    So far, our products cover industrial control digital readout, vehicledisplay, business display, electronic end, medical equipment, intelligent home.
     OK Smart fellows will keep creative mind and keep technique update. We will stand on the front of the era of science and technology with our newer/better/stronger technique. We will serve every customer with high quality and advanced technology.
