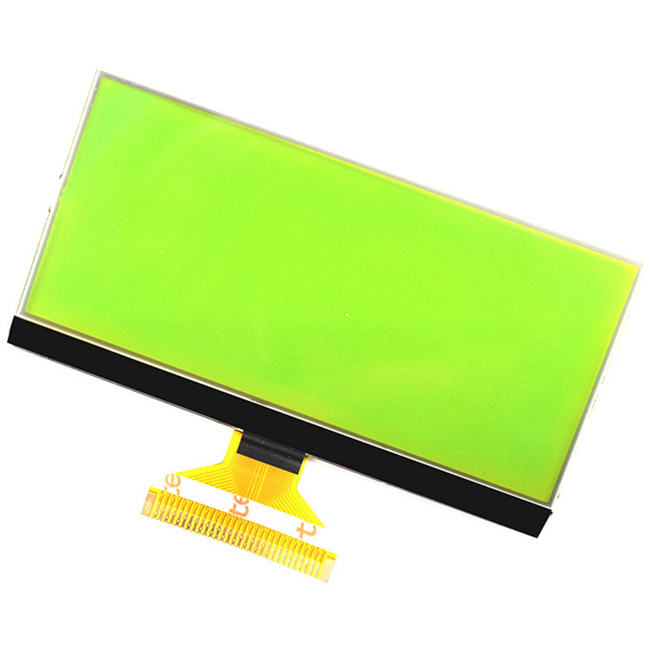

Graphic 130 * 64 Dots FSTN LCD with pin connector / 12864 NT7538 Mono LCD

FUNCTIONS & FEATURES :

Format : 130X64 Dots .
LCD mode : STN/Y-G, Positive, Transmissive .
Viewing direction : 6 o’clock .
Driving scheme : 1/65 Duty cycle, 1/9 Bias .
Low power operation : Power supply voltage range (VDD): 3.0V .
VLCD adjustable for best contrast : LCD driving voltage (VOP): 10.0V .
Operating temperature : 0℃~50℃ 2-8.

Storage temperature : -10℃~60℃

MECHANICALSPECIFICATIONS :

Module size : 87mm(L)*44.5mm(W)*2.8mm(H) .
Viewing area : 83mm(L)*34.5mm(W) .
Dot pitch : 0.6mm(L)*0.49mm(W) .
Dot size : 0.55mm(L)*0.4mm(W)

How to order lcd?

A:Please send us your purchase order by Email or Fax or by Escrow, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity,part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Contact us:

For more details,pls feel free to contact us at anytime.

24 hours hot-line tel & We-chat :0086 133 1681 5589 or ok03 AT smart-lcm dot com

Joanna Lee will be happy to serve you.
